In the world of ultra-precision manufacturing, where tolerances are measured in nanometers and surface finishes approach near-perfection, the choice of tools plays a pivotal role. Diamond tools have emerged as the gold standard for achieving such extraordinary levels of precision, owing to their unmatched hardness, wear resistance, and thermal conductivity. This article explores the diverse applications of diamond tools in ultra-precision manufacturing, shedding light on their capabilities, advantages, and the industries that rely on them.

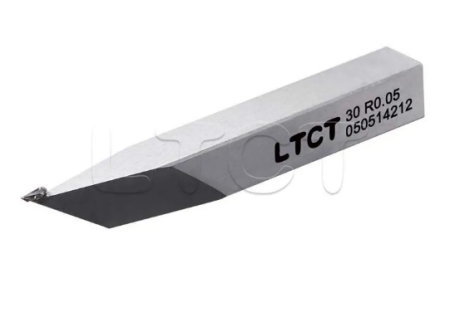

The Unique Properties of Diamond Tools

Diamonds, the hardest known natural material, exhibit a remarkable combination of mechanical, thermal, and optical properties. Synthetic diamonds, often used in industrial applications, retain these attributes while offering additional flexibility in design and composition. These properties make diamond tools ideal for ultra-precision manufacturing processes, where conventional tools often fall short.

Key properties include:

- Exceptional Hardness: Enables machining of the hardest materials without significant wear.

- Thermal Conductivity: Dissipates heat efficiently, minimizing thermal deformation during machining.

- Chemical Inertness: Reduces tool-material interaction, enhancing surface finish quality.

- Edge Sharpness: Ensures precise cutting and minimal material deformation.

Applications in Ultra-Precision Manufacturing

Diamond tools are indispensable in various ultra-precision manufacturing processes. Here are some of their key applications:

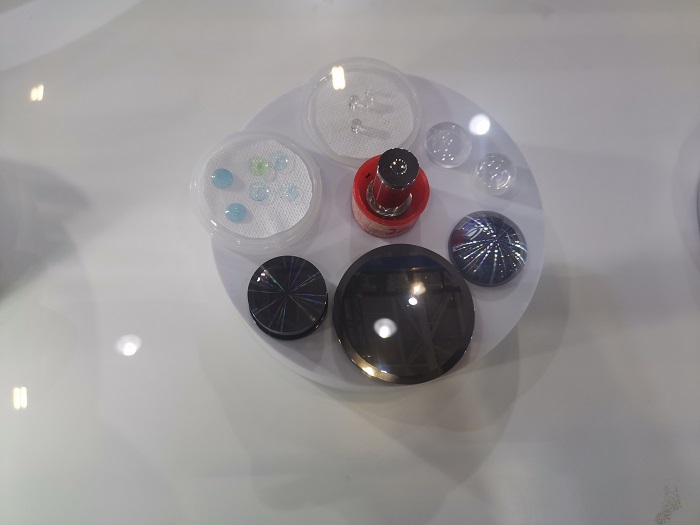

1. Optical Component Manufacturing

Diamond tools are extensively used in the production of optical components such as lenses, mirrors, and prisms. The tools facilitate single-point diamond turning (SPDT), a process capable of producing surfaces with nanometric roughness and sub-micron form accuracy. This is crucial for high-performance optics used in telescopes, cameras, and medical devices.

2. Semiconductor Industry

The semiconductor industry demands extreme precision for the fabrication of silicon wafers and other critical components. Diamond tools are employed in dicing, grinding, and polishing processes to ensure minimal damage and ultra-smooth finishes. Their ability to handle brittle materials without inducing micro-cracks is invaluable in this sector.

3. Medical Device Manufacturing

In the medical field, diamond tools are used to manufacture components for implants, surgical instruments, and diagnostic equipment. For example, the precision required for machining titanium or cobalt-chromium alloy components for orthopedic implants is best achieved with diamond tools.

4. Aerospace and Defense

The aerospace and defense industries rely on diamond tools for the production of high-precision components such as gyroscopes, infrared sensors, and missile guidance systems. The ability of diamond tools to achieve tight tolerances ensures optimal performance of these critical systems.

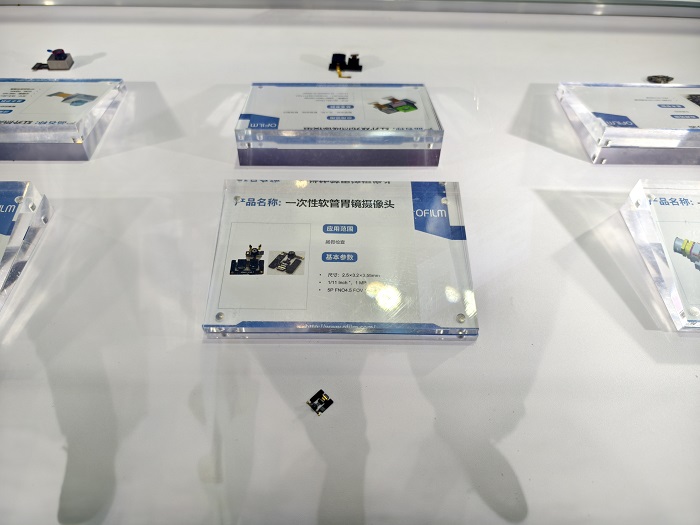

5. Consumer Electronics

With the increasing demand for miniaturized and high-performance electronic devices, diamond tools are used to machine micro-components with exceptional accuracy. They play a key role in producing smartphone camera lenses, micro-mirrors, and other intricate parts.

6. Jewelry and Luxury Goods

Beyond industrial applications, diamond tools are employed in crafting fine jewelry and luxury goods. They enable precise cutting and polishing, bringing out the brilliance and clarity of gemstones.

Advantages of Using Diamond Tools

The widespread adoption of diamond tools in ultra-precision manufacturing can be attributed to several key advantages:

- Superior Surface Finish: Diamond tools produce mirror-like finishes, eliminating the need for additional polishing steps.

- Extended Tool Life: Their exceptional wear resistance reduces downtime and tool replacement costs.

- High Efficiency: Faster cutting speeds and reduced machining times enhance overall productivity.

- Reduced Heat Generation: Efficient thermal conductivity minimizes thermal damage to both the tool and the workpiece.

- Environmental Benefits: The high efficiency and reduced waste generation contribute to greener manufacturing practices.

Challenges and Considerations

Despite their numerous advantages, diamond tools are not without challenges. They are sensitive to high temperatures, as diamonds can degrade when exposed to excessive heat. Additionally, the high cost of diamond tools requires careful handling and maintenance to maximize their lifespan.

Material compatibility is another consideration. While diamond tools excel in machining non-ferrous materials, they are less effective for ferrous metals due to chemical reactivity. This limits their application in certain industries.

Conclusion

Diamond tools have revolutionized ultra-precision manufacturing, enabling industries to achieve levels of accuracy and surface finish that were once unattainable. From optics and semiconductors to aerospace and luxury goods, their applications are as diverse as they are critical. As technology continues to evolve, diamond tools are poised to play an even greater role in shaping the future of precision engineering.
