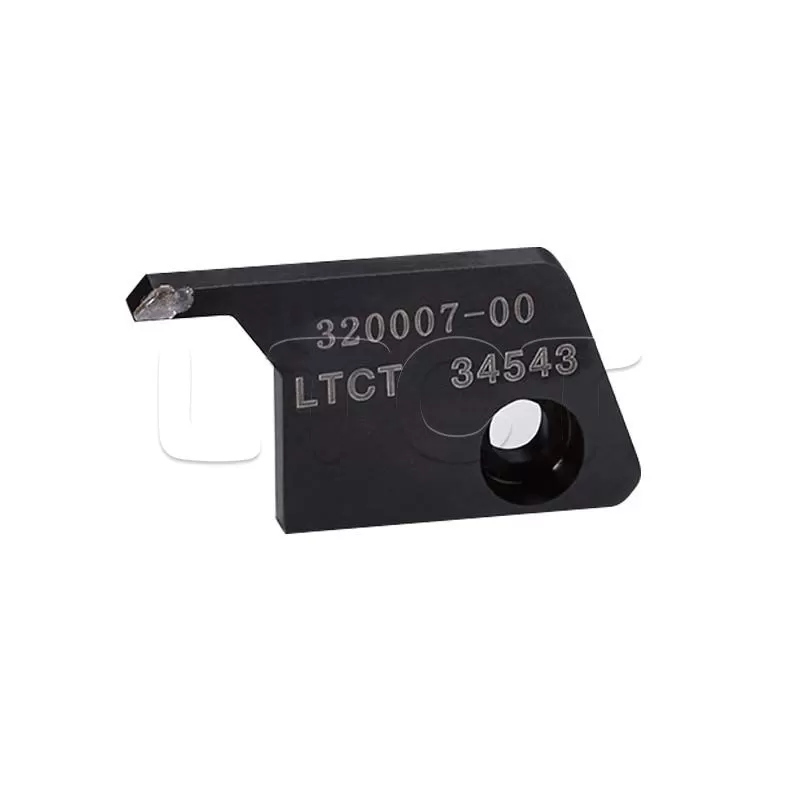

OHIO Sliding Spindle Sliding Shoe

Sliding Spindle, also called sliding shoe, is a kind of machine accessories mounted on electric engraving machines to assist in engraving copper plates.

    Description

    Sliding Spindle, also called sliding shoe, is a kind of machine accessories mounted on electric engraving machines to assist in engraving copper plates.

    And OHIO Sliding Spindle is used to support the distance between the carving stylus and the copper plate. The end face of OHIO Sliding Spindle is specially machined into a sphere, so it's durable, steady and easy to operate.


    OHIO Sliding Spindle Sliding Shoe

    Specification

    Sliding Spindle are available in different engraving machines to suit specific structure.

    We can produce all kinds of Sliding Spindle for HELL gravure systems, OHIO gravure systems and MDC gravure systems. We have 20+ years' experience, strongly production capacity and first-class material.

    OHIO Sliding Spindle sliding shoe Series:

    OHIO 700 sliding shoe, OHIO 800 sliding shoe, GS sliding shoe.

    Advantages:

    Main advantages:

    1. First-class ND and Advanced Synthetic Diamond

    2. The end face specially machined into a sphere

    3. Long Life Span

    4. Short Lead Time

    5. Easy to operate


    What makes our sliding shoe different?

    ● Choose raw materials with excellent quality which keeps our sliding shoe with the longer lifetime.

    ● Applicate advanced diamond cutting, machining and blade passivation technology, decrease the breaking risk reach the minimum.

    ● Expert technicians and a strict quality management system ensure maximum precision within narrow tolerance limits. This ensures the consistency of our products and get plate-making factory's cylinders excellent reducibility.

    ● Each product has a unique security code(S/N) which you can check its details in our after-sales system.

    Usage Attentions

    Applicable Machine:

    OHIO 700 Sliding shoe is suitable for OHIO 700 electronic engraving machine.


    OHIO 800 Sliding shoe is suitable for OHIO 800 electronic engraving machine.


    GS Sliding shoe is suitable for some kinds of electronic engraving machine, just like: M850, GS850, GS+, GS1315, GS2215, GS3615 and Gravostar HS. If the engraving head has been improved, please communicate and confirm before placing the order.


    Attentions:

    When installing the sliding shoe, do not touch the diamond cutting edge directly with your hand or other objects. If you need to wipe, please use isopropyl alcohol or acetone and a lint free cloth or an elder pitch. If you need more aggressive cleaning in order to remove a particular contaminant, please discuss with us.


    OHIO Sliding Spindle Sliding Shoe

    How to check whether the sliding shoe is qualified?

    The aperture observed under the professional detection equipment shows the perfect condition of the sliding shoe.

    After a period of use, the diamond surface of the sliding shoe is prone to mechanical wear, and if the scratch is serious, it needs to be re-polished.


    OHIO Sliding Spindle Sliding Shoe

    Our Service

    ① After-sales services

    Diamond tool care is extremely important. If tool cleaning is needed, wipe the diamond tools carefully using isopropyl alcohol or acetone and a lint free cloth or an elder pitch. If you need more aggressive cleaning in order to remove a particular contaminant, please discuss with us.


    ② Quality Assurance

    The company is equipped with advanced inspection equipment and trained inspection personnel which assure us carry out inspections during each process.

    At the same time, every single tool can be sent to our customers after the professional inspection by Quality Control Center.


    ③ Repair Service

    For the multi-way tools which can be repaired, we can bring your diamond tools back to "new tool" condition in a very short turnaround time. A after-sales service system is available which can let you know the condition of your repaired tools in real time.


    ④ Packages

    OHIO Sliding Spindle Sliding Shoe

    ⑤ Delivery

    We can arrange delivery your goods by air, DHL, FedEx and other ways your need.


    OHIO Sliding Spindle Sliding Shoe

Get In Touch
Send us your quotation request and we will reply to you within one working day
