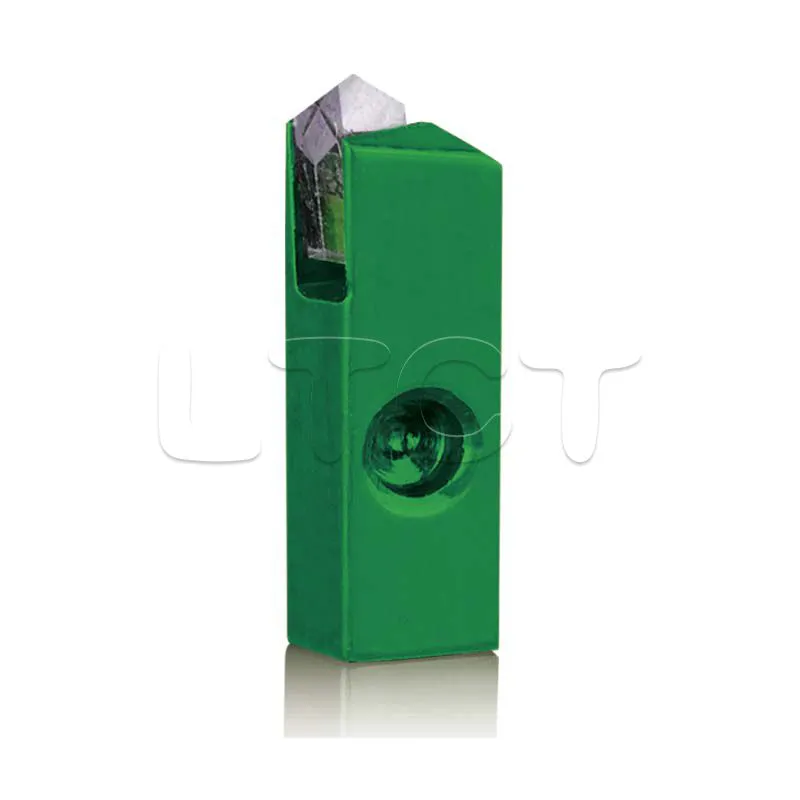

An OHIO engraving stylus, also called OHIO diamond stylus, is a precision tool used in the rotogravure printing process for the rotogravure industry. It is a very small, pointed tip made of diamond, which is renowned for its hardness and durability.
In rotogravure printing, the diamond stylus is used to engrave fine lines and details onto a cylinder or plate. The stylus is attached to a mechanical device that moves it along the surface of the cylinder or plate in a controlled manner. As the stylus moves, it removes a thin layer of material, creating the desired image or pattern.
The OHIO diamond stylus for the rotogravure industry is crucial for achieving high-quality prints with fine details, sharp edges, and accurate reproduction of images and text. The hardness and sharpness of the diamond allow it to create precise and consistent engraving, ensuring the reproduction of intricate designs and high-resolution images.
The use of OHIO diamond styli in the rotogravure industry helps achieve high print quality, efficiency, and productivity in applications such as packaging printing, labels, magazines, and commercial printing.
Diamond engraving tools are available in different shapes, sizes, and tip geometries to suit specific rotogravure applications and printing requirements.
We have the full kinds of Engraving stylus for HELL gravure systems, OHIO gravure systems and MDC gravure systems. 20+ years' experience, strongly production capacity and first-class material make our engraving stylus can meet the engraving requirements of all kinds of products, especially for the high-grade cylinder engraving.
OHIO engraving stylus series:
OHIO GS engraving stylus, OHIO 700 engraving stylus, OHIO 800 engraving stylus.
Applicable machine:
OHIO GS Engraving stylus is suitable for electronic engraving machine, just like: M850, GS850, GS+, GS1315, GS2215, GS3615, Gravo star HS, and etc.
OHIO M800 Engraving stylus is suitable for electronic engraving machine, just like: M800 series, M820 and etc.
OHIO B700 Engraving stylus is suitable for electronic engraving machine, just like: B700 series, B720 and etc.
Engraving stylus degrees:
The common degree range is from 90° to 160°, and other degrees can be customized. What makes us unique is that we use different colors to distinguish angles.
Engraving stylus material:
Diamond: Natural Diamond (ND) and Synthetic Diamond (MCC/MCD)
Holder: Specialized Aluminum Alloy
Main advantages:
1. First-class ND and Advanced Synthetic Diamond
2. State-of-the-art Colorful Engraving Stylus with Symmetrical Aperture
3. Long Life-span
4. Short Lead Time
5. Complete Product Series
What makes our diamond stylus different?
● Choose raw materials with excellent quality which ensures our engraving stylus with the longer lifetime.
● Applicate advanced diamond cutting, machining and blade passivation technology, decrease the breaking risk reach the minimum.
● Expert technicians and a strict quality management system ensure maximum precision within narrow tolerance limits. This ensures the consistency of our products and make plate-making factory's cylinders have excellent reducibility.
● Engraving stylus holder with advanced electroplating technology makes engraving stylus beautiful and easy to recognize.
Each product has a unique security code(S/N) which you can check its details in our after-sales system.
Attentions:
When installing the electronic engraving stylus, don't touch the diamond cutting edge directly with your hands or other objects. If you need to wipe stylus, please use isopropyl alcohol or acetone& a lint free cloth or an elder pith. If you need more aggressive cleaning in order to remove a particular contaminant, please contact us.
Broken Engraving Stylus
The engraving stylus may break for various reasons.
1. The cutting diamond hits hard particles in the copper or the cylinder grinding residue (abrasive grit) or porous points (cavities) in the copper, such as coarse copper structure.
2. Attempts to clean the Engraving stylus with a brush or fingers. Diamonds are generally known for their hardness and strength, but even slight contact can result in damage and destruction and render the stylus unusable.
3. Attempts to clean with compressed air are just as dangerous for the stylus. If a particle of abrasive grit or dust strikes the cutting edge of the stylus at great speed, it will destroy the cutting edge. Furthermore, it is also possible that a blast of compressed air could blow copper burr into the bearings of the engraving system which would then have a detrimental effect on the stylus damping.
① After-sales services
Diamond tool care is extremely important. If tool cleaning is needed, wipe the diamond tools carefully using alcohol, acetone& a lint free cloth or an elder pitch. If you need more aggressive cleaning in order to remove a particular contaminant, please contact us.
② Quality Assurance
Litian Century Diamond Tools is equipped with advanced inspection equipment and trained inspection personnel which assure us carry out inspections during each process.
At the same time, every single tool can be sent to our customers after the professional inspection by Quality Control Center.
③ Repair Service
For the multi-way tools which can be repaired, we can bring your diamond tools back to "new tool" condition in a very short turnaround time. An after-sales service system is available which can let you know the condition of your repaired tools in real time.
④ Packages:
The yellow box for ≤110° stylus
The blue box for 110° -130° stylus
The red box for ≥130°stylus
⑤ Delivery
We can deliver your goods by air, DHL, FedEx and other ways your need.
