OHIO Burr Cutter

Burr cutter, also called scraper, is a precision diamond engraving tool, which is installed on the electric carving machine to remove the copper shavings carved out by the engraving stylus.

    Description

    Burr cutter, also called scraper, is a precision diamond tool, which is installed on the electric carving machine to remove the copper shavings carved out by the engraving stylus.


    Burr cutter, engraving stylus and sliding shoe are precision diamond tools for rotogravure plate-making industry. All of these diamond tools are mounted on the engraving machines.


    The burr cutter can remove the burrs produced during engraving which play an important role in the rotogravure industry, it helps achieve high print quality, efficiency, and productivity in applications such as package printing, labels, magazines, and commercial printing.

    Specification

    Burr cutters are available in different engraving machines to suit specific structure.

    We can produce all kinds of burr cutters for HELL gravure systems, OHIO gravure systems and MDC gravure systems. We have 20+ years' experience, strongly production capacity and first-class material.

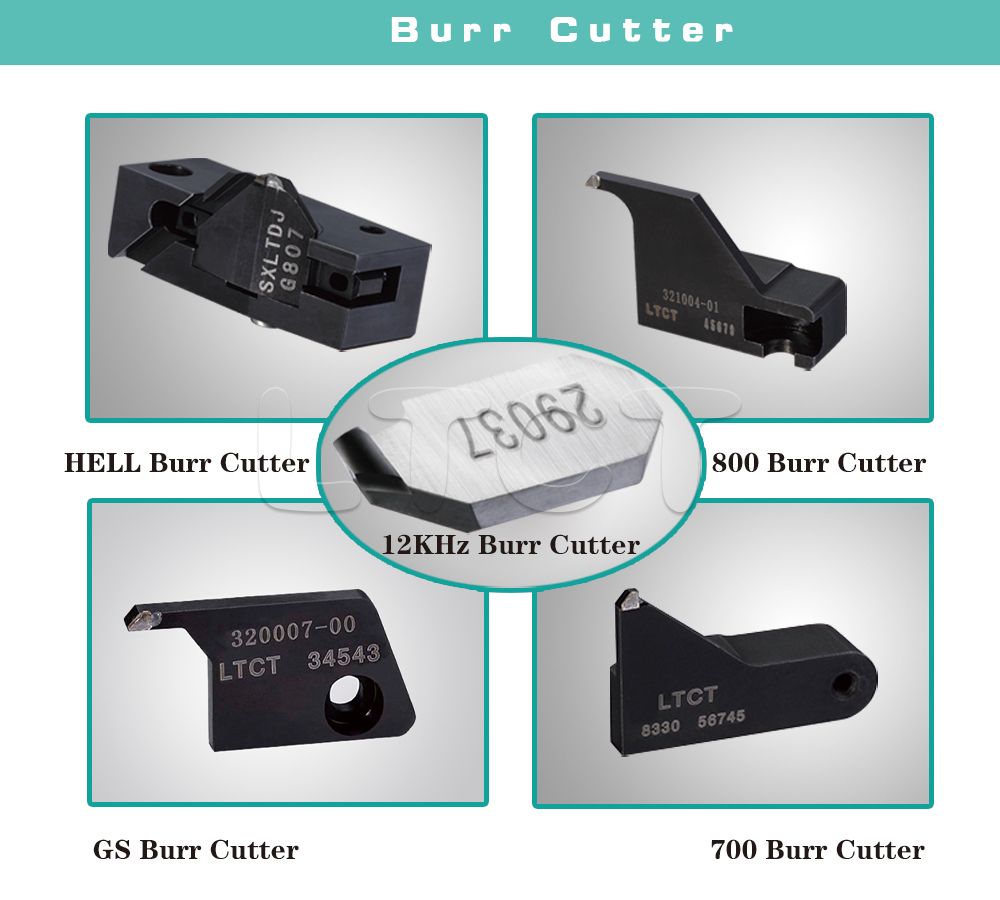

    OHIO series burr cutter includes:

    OHIO GS Burr Cutter

    OHIO M800 Burr Cutter

    OHIO B700 Burr Cutter


    OHIO Burr Cutter

    Advantages:

    Main advantages:

    1. First-class ND and Advanced Synthetic Diamond

    2. Long Life Span

    3. Short Lead Time

    4. Complete Product Series

    5. Advanced Equipment


    What makes our Burr cutter different?

    ● Choose raw materials with excellent quality which keeps our burr cutter with the longer lifetime.

    ● Expert technicians and a strict quality management system ensure maximum precision within narrow tolerance limits. This ensures the consistency of our products and gets plate-making factory's cylinders excellent reducibility.

    ● Each product has a unique security code(S/N) which you can check its details in our after-sales system.

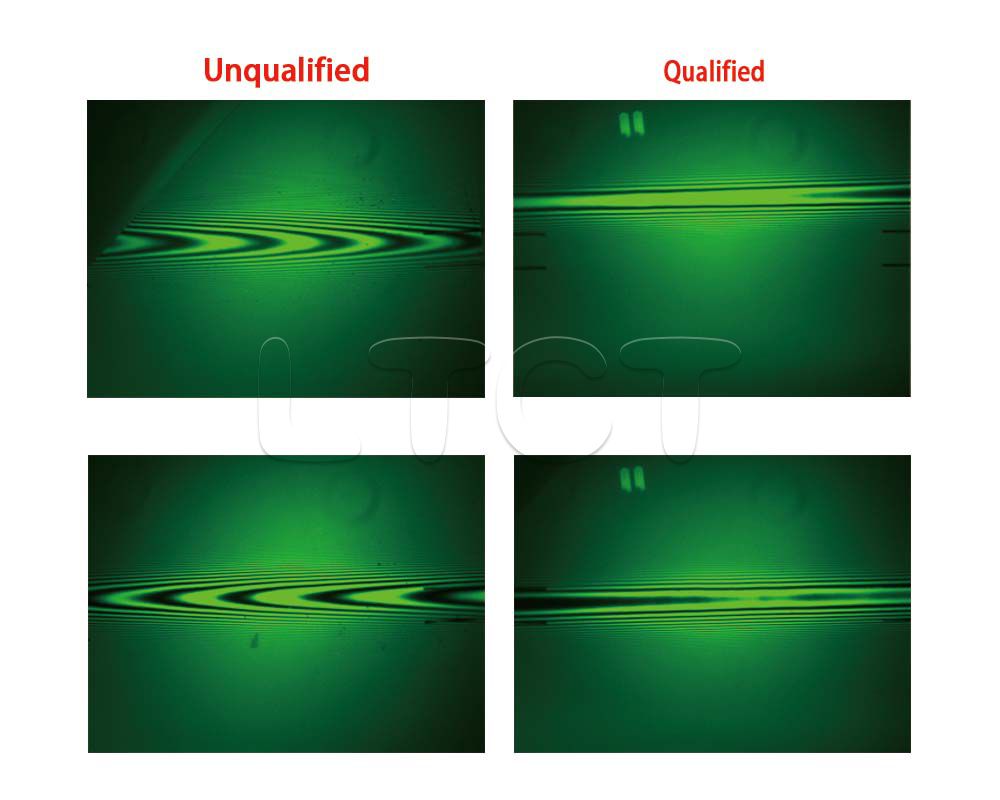

    ● Inspection methods: We found the possibility to examine the quality of our burr cutters to meet the highest technical requirements.

    Under the interference microscope we find out paralleled the light lines, more effective the burr cutter.


    OHIO Burr Cutter

    Usage Attentions

    Applicable Machine:

    OHIO GS Burr Cutter is suitable for electronic engraving machine, just like: M850, GS850, GS+, GS1315, GS2215, GS3615, Gravo star HS and etc.

    OHIO M800 Burr Cutter is suitable for electronic engraving machine, just like: M800 series, M820 and etc.

    OHIO B700 Burr Cutter is suitable for electronic engraving machine, just like: B700 series, B720 and etc.


    Attentions:

    Normal wear of burr cutter

    The burr cutter is used to remove the burrs produced during engraving. In order to generate optimal efficiency, the edge of a burr cutter needs to match the cylinder's diameter precisely and the operating parameters should be adjusted accordingly. When a burr cutter is used for cylinders of a certain diameter for a long period, a concave groove occurs in the ground surface. This groove indicates the normal mechanical wear and if the groove-radius matches the one of the cylinders.


    If the groove-radius is larger than the cylinder's radius, then the edge of this burr cutter can't cover the copper surface completely and remove the burrs totally. Furthermore, the sharp edge of the groove will cut fine lines into the copper surface and destroy the quality. If the groove-radius is smaller than the cylinder's radius, it won't cause any problem.


    Therefore, we suggest changing the cylinder size regularly to avoid the groove forming on the edge of the burr cutter.


    Wear Analysis

    The scraper is rarely defective for reasons other than wear, but if the scraper holder is installed too close to the cylinder surface, the blade may be damaged, and the blade damage will cause scratches on the cylinder. This scratch has a detrimental effect on the ink removal and is an additional cause of premature doctor blade wear. Impurities in the copper can also contribute to destroy the burr cutter, hard particles in the copper cut fine lines into the surface of the burr cutter, the distance between these lines may cause blade breakage.

    Our Service

    ① After-sales services

    Diamond tool care is extremely important. If tool cleaning is needed, wipe the diamond tools carefully using isopropyl alcohol, acetone& a lint free cloth or an elder pith. If you need more aggressive cleaning in order to remove a particular contaminant, please contact us.


    ② Quality Assurance

    Litian Century Diamond Tools is equipped with advanced inspection equipment and trained inspection personnel which assure us carry out inspections during each process.

    At the same time, every single tool can be sent to our customers after the professional inspection by Quality Control Center.


    ③ Repair Service

    For the multi-way tools which can be repaired, we can bring your diamond tools back to "new tool" condition in a very short turnaround time. An after-sales service system is available which can let you know the condition of your repaired tools in real time.


    ④ Packages

    We customized special packaging box for the tool, in line with the mechanical structure of the human body, that is, convenient disassembly and safe.


    OHIO Burr Cutter Packages


    ⑤ Delivery

    We can arrange delivery your goods by air, DHL, FedEx and other ways your need.


    OHIO Burr Cutter Delivery


    Our products enjoy a great reputation for its good surface finish, high precision and complete product variety. We serve the customers from USA, Mexico, Germany, Belgium, Russia, South Africa, Egypt, India, Pakistan, Korea, Japan and all Southeast Asian countries.
