HELL Engraving Stylus

Engraving stylus, also called diamond stylus, engraving needle, engraving knife or carving needle, is installed in engraving machines to engrave text, images or pattern on the copper cylinder.

    Description

    Engraving stylus, also called diamond stylus, engraving needle, engraving knife or carving needle, is installed in engraving machines to engrave text, images or pattern on the copper cylinder.


    Engraving Stylus, Sliding Shoe and Burr Cutter are precision diamond tools for rotogravure plate-making industry. All of these diamond tools are mounted on the engraving head which is a core component of the engraving machine.


    HELL Engraving Stylus


    A diamond stylus for the rotogravure industry is a precision tool used in the rotogravure printing process. It is a small, pointed tip made of diamond, which is renowned for its hardness and durability.


    In rotogravure printing, the diamond stylus is used to engrave fine lines and details onto a cylinder or plate. The stylus is attached to a mechanical device that moves it along the surface of the cylinder or plate in a controlled manner. As the stylus moves, it removes a thin layer of material, creating the desired image or pattern.


    The HELL diamond stylus for the rotogravure industry is crucial for achieving high-quality prints with fine details, sharp edges, and accurate reproduction of images and text. The hardness and sharpness of the diamond allow it to create precise and consistent engraving, and ensure the reproduction of intricate designs and high-resolution images.


    The use of HELL diamond styluses in the rotogravure industry helps achieve high print quality, efficiency, and productivity in applications such as packaging printing, labels, magazines, and commercial printing.

    Specification

    HELL diamond styli is available in different shapes, sizes, and tip geometries to suit specific rotogravure applications and printing requirements.


    We can produce all kinds of Engraving stylus for HELL gravure systems, OHIO gravure systems and MDC gravure systems. 20+ years' experience, strongly production capacity and first-class material make our engraving stylus can meet the engraving requirements of all kinds of products, especially for the high-grade cylinder engraving.


    HELL engraving stylus:

    HELL Engraving styluswithout wingwith wingHELL sprint III (12K)HELL (A head)coarse screen
    SeriesStandardYesYesYesYes
    PISAYesYesNANA
    HoneycombYesYesNANA
    Diamond TypesNatural DiamondYesYesYesYes
    Synthetic DiamondYesYesYesYes
    HolderSpecialized Aluminum AlloyYesYesYesYes
    Degree90°-160°YesYes110°/120°/130°110°/120°/130°
    OtherYesYesNANA


    HELL Engraving Stylus

    Advantages:

    Main advantages:

    1. First-class ND and Advanced Synthetic Diamond

    2. State-of-the-art Colorful PISA Engraving Stylus with Symmetrical Aperture

    3. Long Life Span

    4. Short Lead Time

    5. Complete Product Series


    What makes our diamond stylus different?

    ● Choose raw materials with excellent quality which keeps our engraving stylus with the longer lifetime.

    ● Applicate advanced diamond cutting, machining and blade passivation technology, decrease the breaking risk reach the minimum.

    ● Expert technicians and a strict quality management system ensure maximum precision within narrow tolerance limits. This ensures the consistency of our products and gets plate-making factory's cylinders excellent reducibility.

    ● Engraving stylus holder with advanced electroplating technology makes engraving stylus beautiful and easy to recognize.

    ● Each product has a unique security code(S/N) which you can check its details in our after-sales system.


    HELL Engraving Stylus

    Usage Attentions

    Applicable machine:

    HELL engraving stylus without wing is suitable for 8KHZ frequency electronic engraving machine, just like: Helio Gravures K500, K405, K305, K500C, K50C, K55C, K5SMART and some other Gravure machines.

    HELL Engraving Diamond Stylus

    HELL engraving stylus with wing is suitable for 4KHZ frequency electronic engraving machine, just like: HELL-304, MDC, DYM, Apollo and some other Gravure machines.


    HELL sprint III (12K)engraving stylus installs in HelioSprint Ⅲ, Xtrene, 12KHZ engraving head.


    HELL (A head) coarse screen engraving stylus installs in "A" engraving head.


    Attentions:

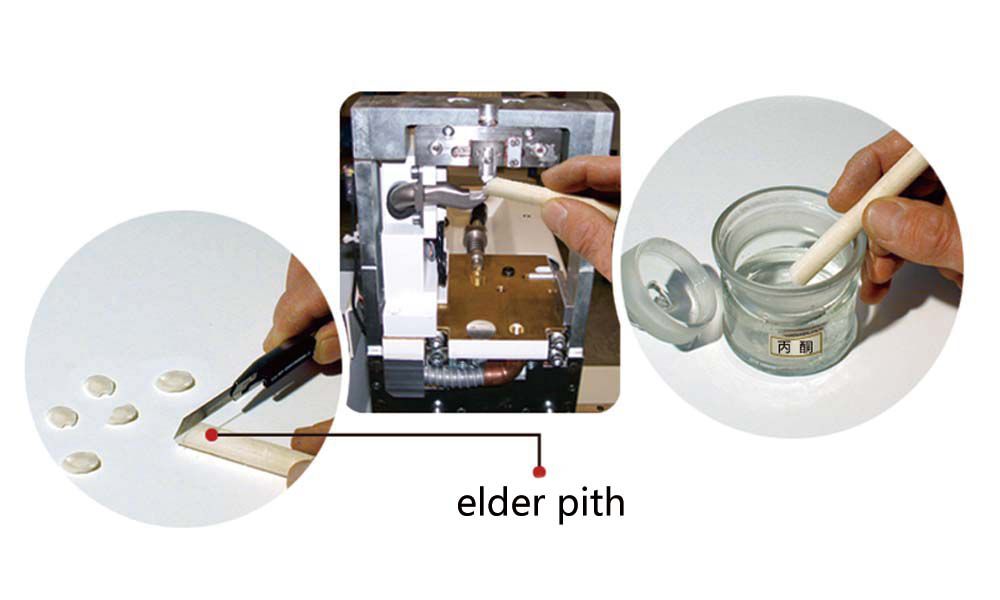

    When you install the electronic engraving stylus, please don't touch the diamond cutting edge directly with your hands or other objects. If you need to wipe it, please use isopropyl alcohol , acetone & a lint free cloth or an elder pith. If you need more aggressive cleaning in order to remove a particular contaminant, please contact us.

    HELL Engraving Diamond Stylus Usage

    Broken Engraving Stylus

    The engraving stylus may break for various reasons.


    Possible causes of Broken stylus tip

    1. Broken tips result from incorrect setting at the engraving amplifier. The stylus penetrates more deeply than actually intended for the cut of the diamond; the rear "free" facets of the stylus hit the copper with each cut which result in the stylus overloaded and broken prematurely!


    2. Impurities in the copper and excessive Vickers hardness also cause breakage. Its inclined position minimizes the risk of breakage. The cut of the stylus diamond is designed for a specific cutting behavior. The respective forces occurring during the cutting and burr removal stroke are therefore coped for with no problem. Once the force directions acting on the diamond change, the tip will break. An insufficient Vickers hardness results in poor chip removal and therefore in a poor (blurred) engraving image.


    3. Other causes of tip breakage may be due to incorrect handling, such as when setting down the engraving system hard with the sliding spindle set too short, etc.


    Coarse breakage

    The engraving stylus may break for various reasons.


    1. The cutting diamond hits hard particles in the copper or the cylinder grinding residue (abrasive grit) or porous points (cavities) in the copper, such as coarse copper structure.


    2. Attempts to clean the engraving stylus with a brush or fingers. Diamonds are generally known for their hardness and strength, but even slight contact can result in damage and destruction and render the stylus unusable.


    3. Attempts to clean with compressed air are just as dangerous for the stylus. If a particle of abrasive grit or dust strikes the cutting edge of the stylus at great speed, it will destroy the cutting edge. Furthermore, it is also possible that a blast of compressed air could blow copper burr into the bearings of the engraving system which would then have a detrimental effect on the stylus damping.

    Our Service

    ① After-sales services

    Diamond tool care is extremely important. If tool cleaning is needed, wipe the diamond tools carefully using isopropyl alcohol, acetone& a lint free cloth or an elder pith. If you need more aggressive cleaning in order to remove a particular contaminant, please contact us.


    ② Quality Assurance

    Litian Century Diamond Tools is equipped with advanced inspection equipment and trained inspection personnel which assure us carry out inspections during each process.

    At the same time, every single tool can be sent to our customers after the professional inspection by Quality Control Center.


    ③ Repair Service

    For the multi-way tools which can be repaired, we can bring your diamond tools back to "new tool" condition in a very short turnaround time. An after-sales service system is available which can let you know the condition of your repaired tools in real time.


    ④ Packages

    The white box for ≤110° stylus

    The blue box for 110° -130° stylus

    The red box for ≥130°stylus

    HELL Engraving Diamond Stylus Packages

    ⑤ Delivery

    We can arrange delivery your goods by air, DHL, FedEx and other ways your need.


    HELL Engraving Diamond Stylus Delivery


    Our products enjoy a great reputation for its good surface finish, high precision and complete product variety. We serve the customers from USA, Mexico, Germany, Belgium, Russia, South Africa, Egypt, India, Pakistan, Korea, Japan and all Southeast Asian countries.
