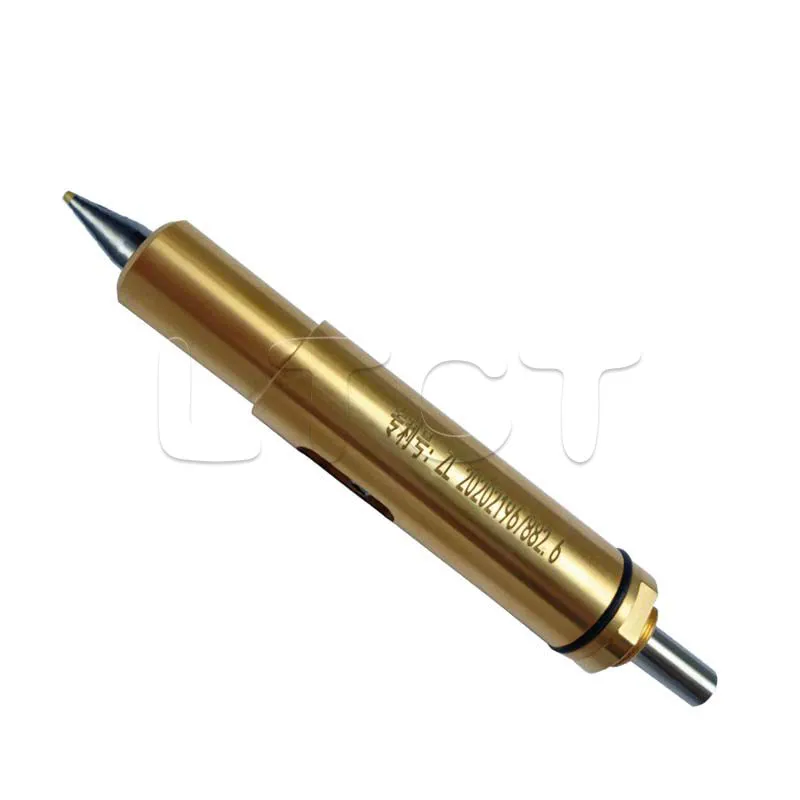

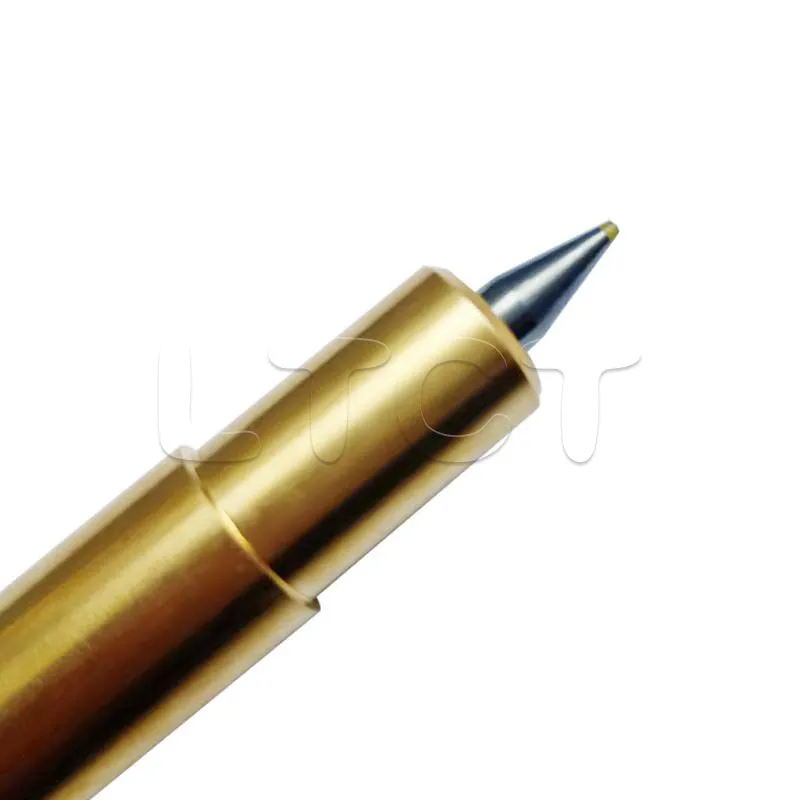

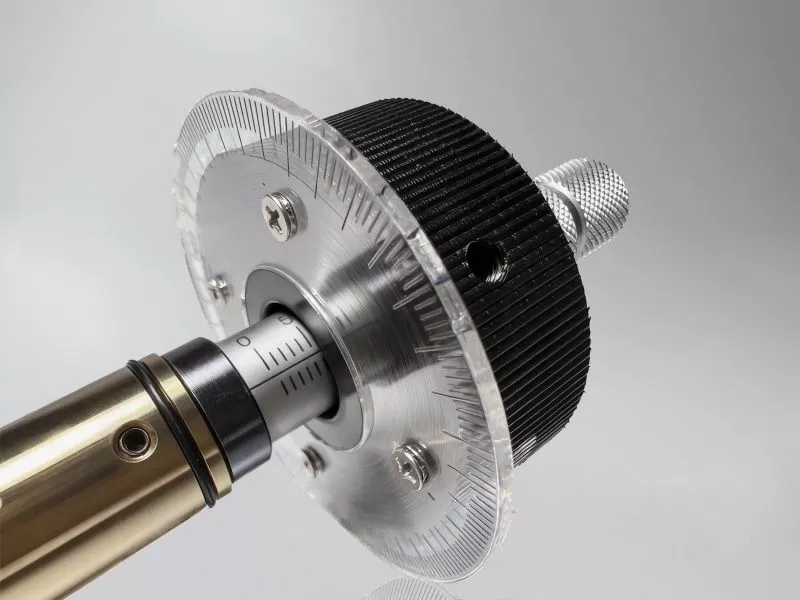

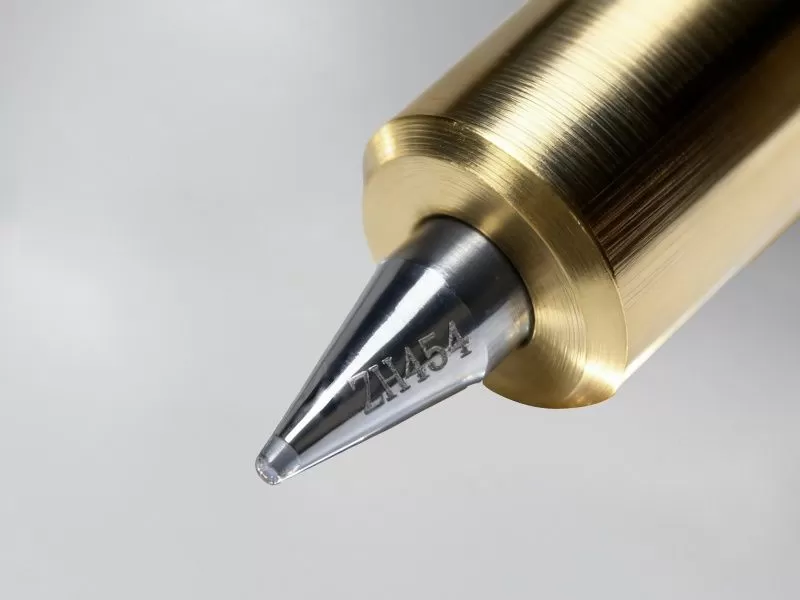

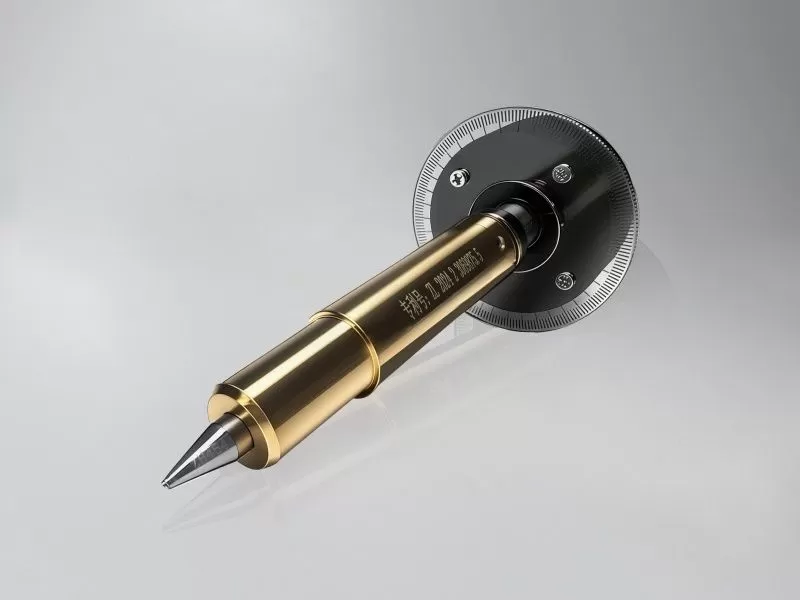

HELL Direct Acting Sliding Shoe System

HELL direct acting sliding shoe system present an updated model of the traditional sliding spindle system. Sliding spindle, also called sliding shoe, is a kind of machine accessories mounted on electric engraving machines to assist in engraving copper plates.

    Description

    HELL direct acting sliding spindle presents an updated model of the traditional sliding spindle system. Sliding spindle, also called sliding shoe, is a kind of machine accessories mounted on electric engraving machines to assist in engraving copper plates.


    The role of the sliding shoe as follows:

    Support: the diamond surface of the sliding shoe is close to the surface of the plate roller to support the engraving head;

    Compensation: the sliding shoe can adjust the position of the engraving head to compensate for the defects of the plate roller;

    Adjustability: by adjusting the sliding shoe, you can change the dot size.


    In the operation, the workers need to readjust the sliding shoe after each change of the electronic engraving stylus, and the traditional sliding shoe is easy to appear when adjusting: the diamond arc and the cylinder are not well fitted, resulting in cylinder scratches in the engraving process.


    In order to improve operation efficiency and reduce cylinder scratches, we have improved and developed a straight sliding shoe system (integrating the copper sleeve with the sliding shoe). Compared with the traditional sliding shoe, the straight sliding shoe system has the characteristics of easy operation, less scratches, long life and low cost.

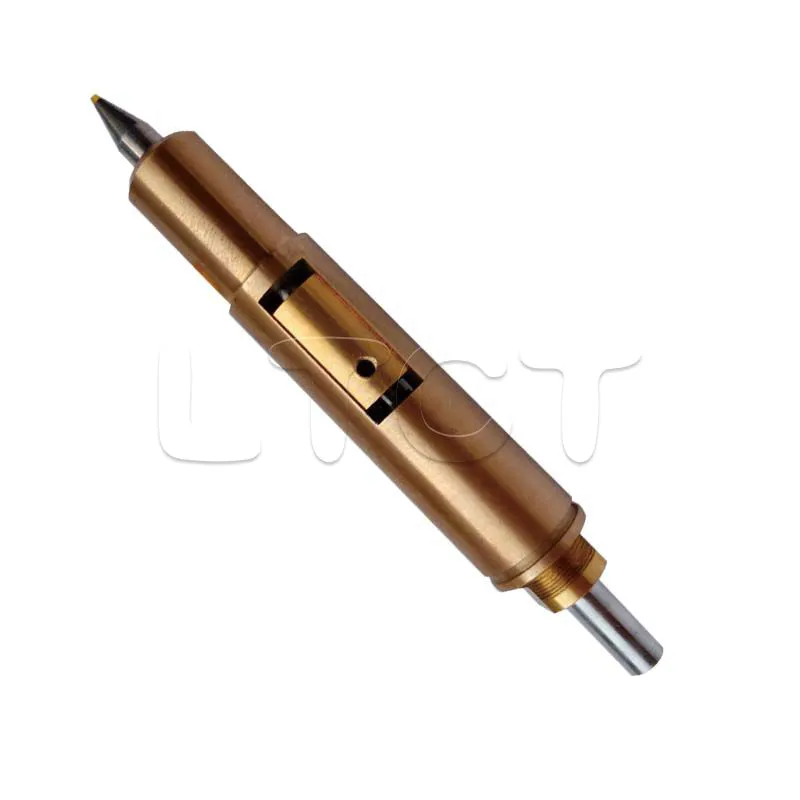

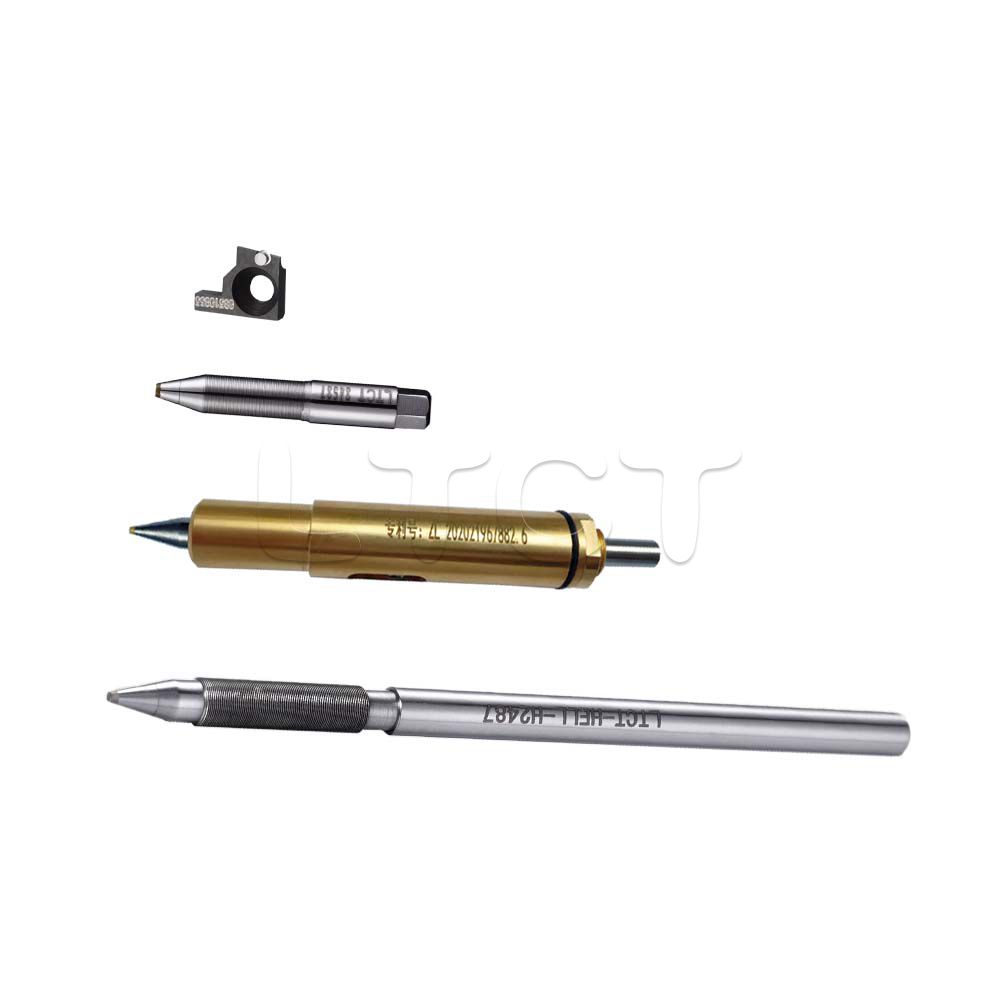

    HELL Straight Sliding Spindle Sliding Shoe

    Specification

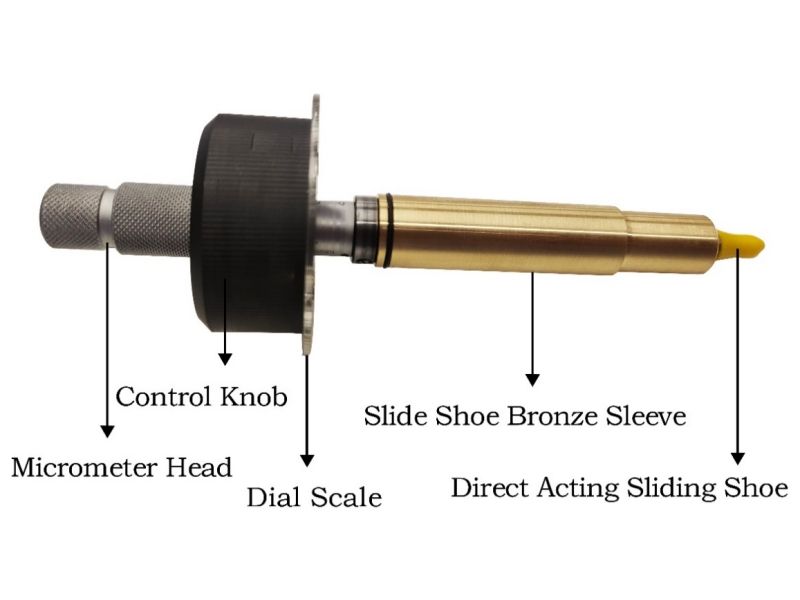

    HELL direct acting sliding shoe system is an upgrade sliding spindle system with integrated structure, faster installation, and more convenient adjustment.

    When you need to repair it, please loosen the fastening screw of the sliding shoe, then you can slide the sliding shoe and make it get polished.


    Material:

    Diamond: Natural Diamond (ND)and Synthetic Diamond (MCC/MCD)

    Advantages:

    What makes our Straight sliding shoe system different?

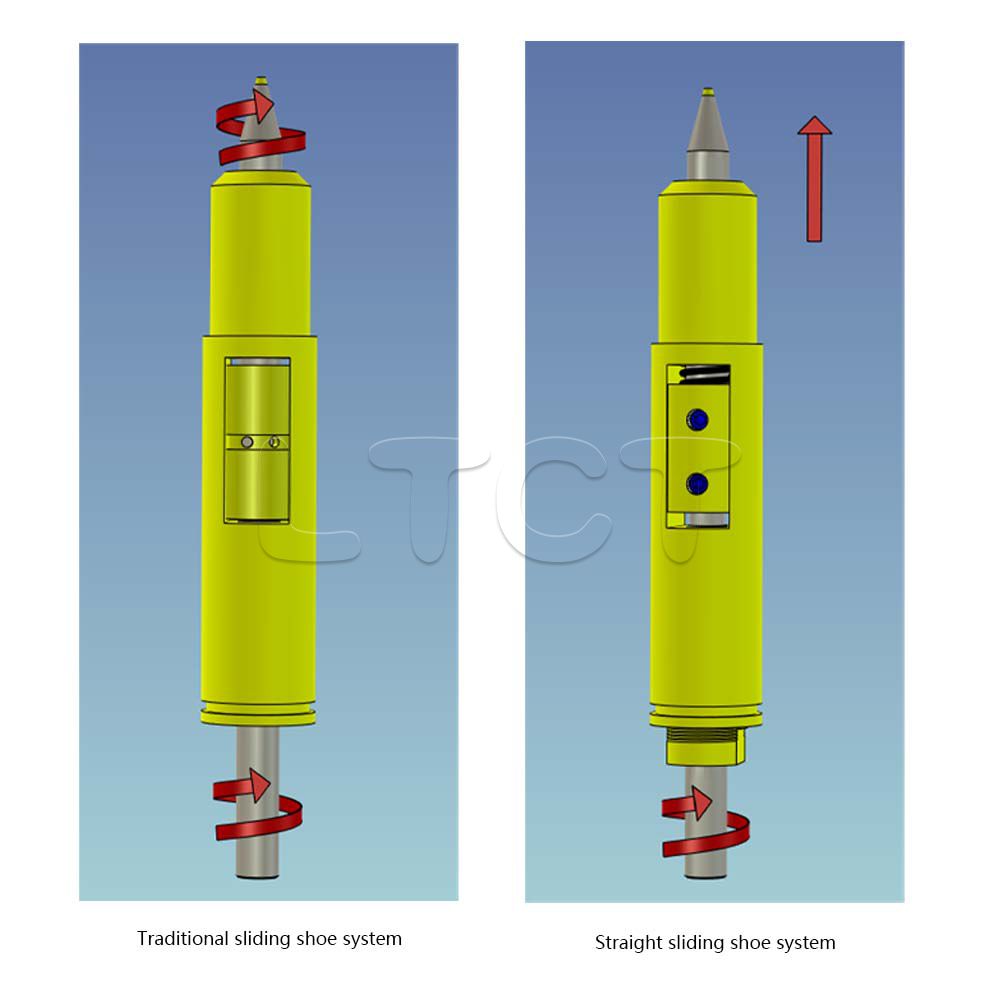

    The motion of the straight sliding shoe is different from that of the traditional sliding shoe (as shown in the figure)

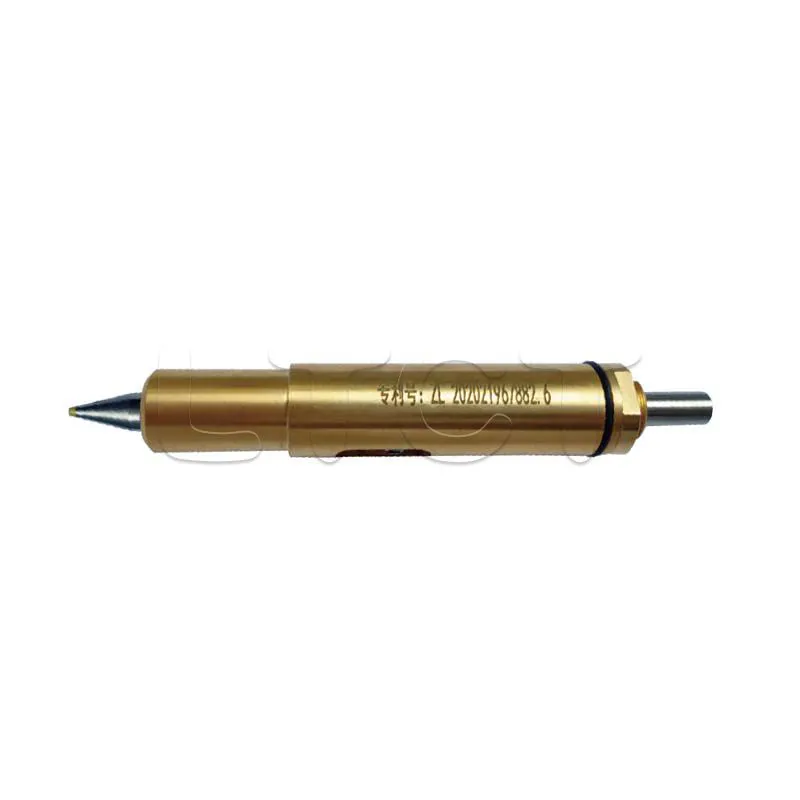

    HELL Straight Sliding Spindle Sliding Shoe

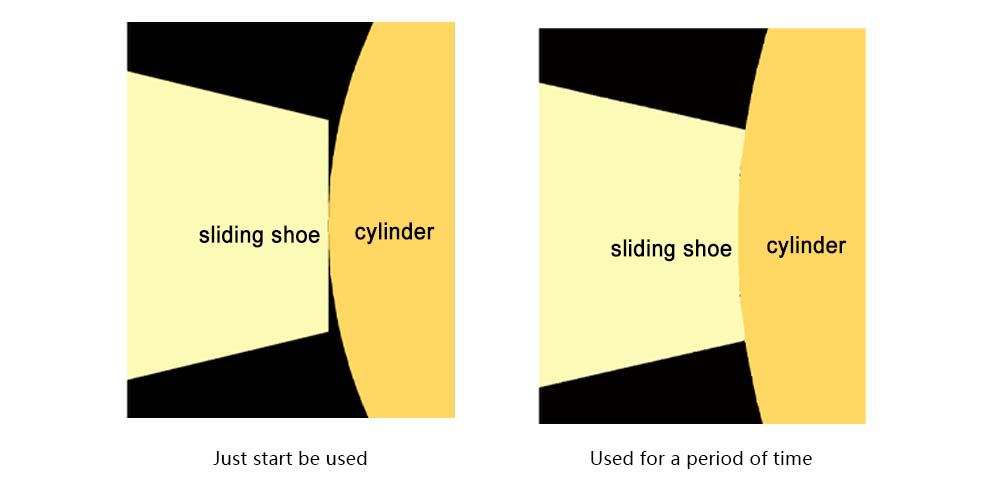

    When a new sliding shoe is just used, the contact surface between the sliding shoe and the cylinder is small. After a period of time, the sliding shoe diamond will form a curved surface.


    When it is necessary to adjust the sliding shoe, the traditional sliding shoe system rotates, the arc surface cannot be completely matched with the cylinder, resulting in scratches to the cylinder copper surface.


    However, the arc of straight sliding shoe system can always keep in line with the cylinder when rotating, and will not scratch the copper cylinder, which can not only save time of changing stylus but also extend the life of straight sliding shoe (as shown in the figure).


    HELL Straight Sliding Spindle Sliding Shoe


    Usage Attentions

    Applicable Machine:

    HELL direct acting sliding shoe system is suitable for high-speed electronic engraving machines, just like:Helio Gravures K500, K405, K305, K500C, K50C, K55C, K5SMART and some other Gravure machines.


    Attentions:

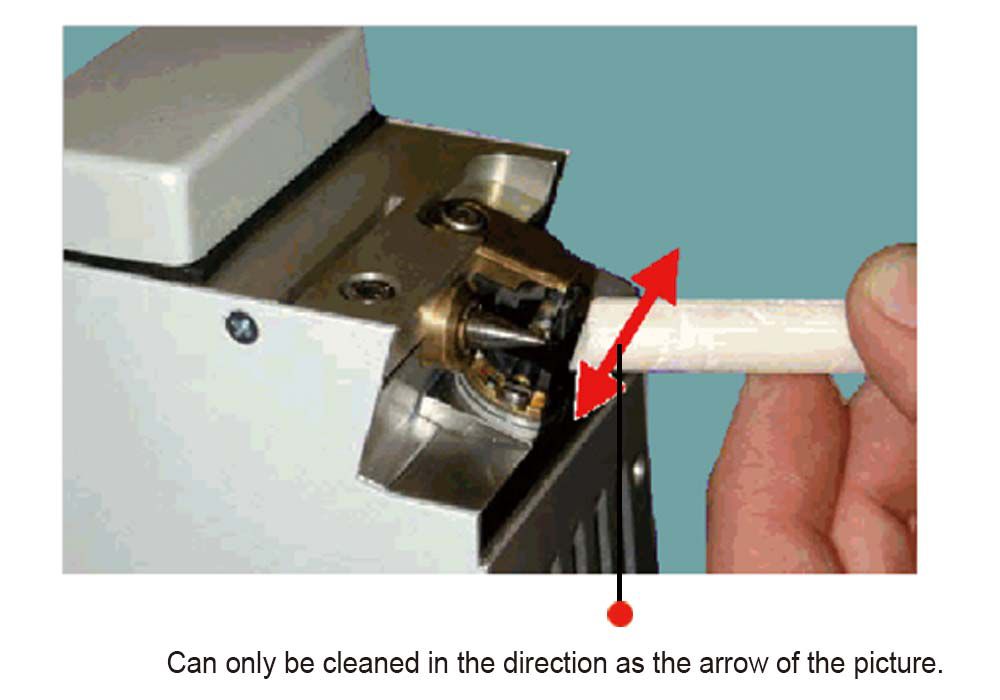

    When you install the sliding shoe, do not touch the diamond cutting edge directly with your hand or other objects.  If you need to wipe it, please use isopropyl alcohol, acetone & a lint free cloth or an elder pitch.  If you need more aggressive cleaning in order to remove a particular contaminant, please discuss with us.


    HELL Straight Sliding Spindle Sliding Shoe

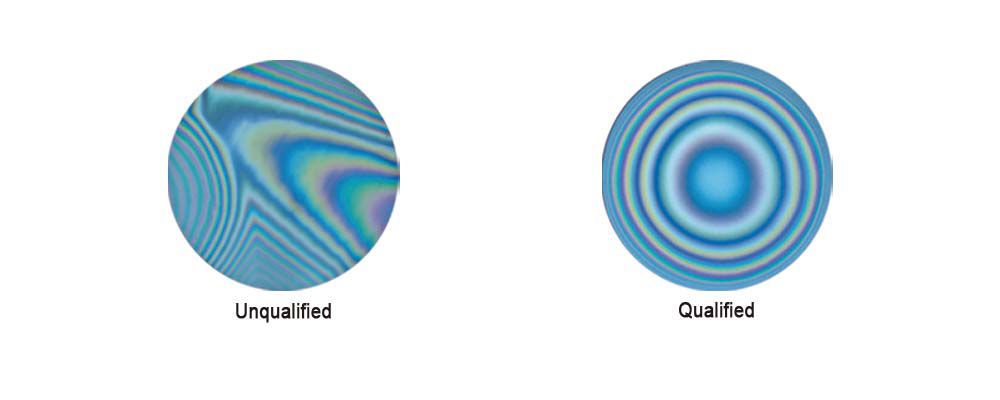

    The aperture observed under the professional detection equipment shows the perfect condition of the sliding shoe.


    HELL Straight Sliding Spindle Sliding Shoe

    After a period of use, the diamond surface of the sliding shoe is prone to mechanical wear, and if the scratch is serious, it needs to be re-polished.


    Method of use:

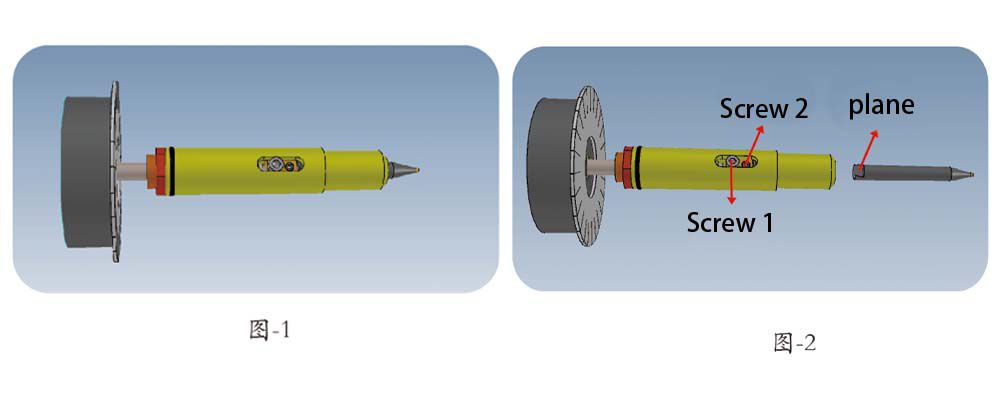

    1.When you use it for the first time, please take out the copper sleeve of the original sliding shoe and install the sliding shoe knob on the straight-in sliding shoe system.

    Insert the in-line sliding shoe system into the engraving head, lock the inlay screw (M4) on the engraving head, and adjust the sliding shoe well.

    Distance from the tip of the needle can be used normally.


    2. When removing the sliding spindle, please loosen the embedded screw (M4) on the engraving head, take out the straight-in sliding shoe system, and loosen it.

    Remove the screws from the in-line slide 2 and take out the slide.


    3. When installing the sliding shoe, take out the new sliding shoe, keep the tail plane of the sliding shoe parallel to the screw hole, and insert the sliding shoe.

    Make sure screw 2 is aligned with the tail plane of the slide foot to lock on the bottom.


    4. Straight sliding spindle sliding shoe system into the engraving head adjusted to start use cannot be removed.

    The foot system is removed when the foot is worn and needs to be trimmed.


    HELL Straight Sliding Spindle Sliding Shoe

    Our Service

    ① After-sales services

    Diamond tool care is extremely important. If tool cleaning is needed, wipe the diamond tools carefully using isopropyl alcohol or acetone and a lint free cloth or an elder pitch. If you need more aggressive cleaning in order to remove a particular contaminant, please discuss with us.


    ② Quality Assurance

    Litian Century Diamond Tools is equipped with advanced inspection equipment and trained inspection personnel which assure us carry out inspections during each process.

    At the same time, every single tool can be sent to our customers after the professional inspection by Quality Control Center.


    ③ Repair Service

    For the multi-way tools which can be repaired, we can bring your diamond tools back to "new tool" condition in a very short turnaround time. An after-sales service system is available which can let you know the condition of your repaired tools in real time.

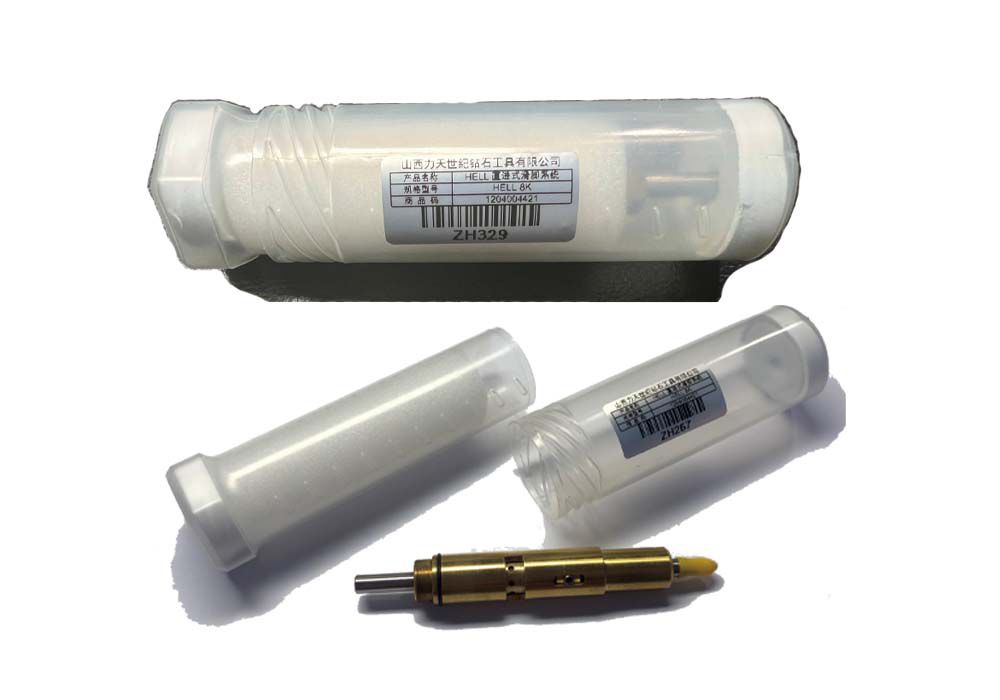

    ④ Packages

    We customize special packaging box for the tool, in line with the mechanical structure of the human body, that is, convenient disassembly and safe.


    HELL Direct Acting Sliding Spindle Package

    ⑤ Delivery

    We can arrange delivery your goods by air, DHL, FedEx and other ways your need.


    HELL Direct Acting Sliding Spindle Delivery
